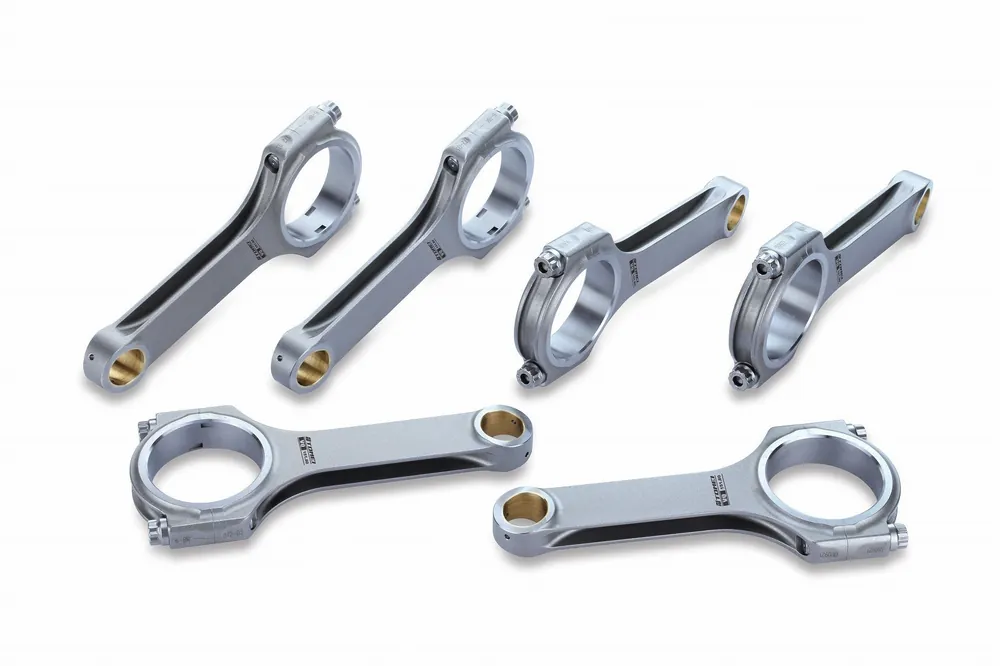

Tomei Forged H-Beam Con-Rod Set Vq35Hr 151.80MM (Std)

Tomei Forged H-Beam Con-Rod Set — VQ35HR 151.80mm (STD) — TA203A-NS03A

The Tomei Forged H-Beam Connecting Rod Set is engineered for high-performance VQ35HR engine builds where strength, reliability, and precision matter. Designed as a standard-length (151.80mm) replacement for the factory rods, this set uses a forged H-beam construction to provide increased rigidity and durability for high-RPM and high-power applications while maintaining proper OEM geometry.

Key Features

• Forged H-beam design for superior strength and rigidity under extreme load.
• Standard 151.80mm center-to-center length maintains OEM engine geometry.
• High-strength SNCM439 material for durability in performance engine builds.
• ARP L19 rod bolts included for improved clamping force and reliability.
• Precision machining to ensure consistent balance and fitment.
• Designed for high-RPM use and increased cylinder pressures common in modified engines.

Technical Specifications

• Center-to-Center Length: 151.80mm (STD)
• Material: SNCM439 forged steel
• Big End Bore × Width: 57.0mm × 20.8mm
• Pin End Bore × Width: 22.0mm × 20.8mm
• Rod Bolt: ARP L19 (3/8-24, 40.0mm)
• Bearing Size (Inner Diameter): 54.0mm
• Approx. Weight: 563g per rod

Fitment

• Engine: Nissan VQ35HR
• Vehicle: Nissan 350Z (VQ35HR models)

Additional Notes

• Designed for performance and motorsport engine builds.
• Professional engine assembly and proper clearancing are strongly recommended.
• Sold as a complete connecting rod set.

SKU: TA203A-NS03A
