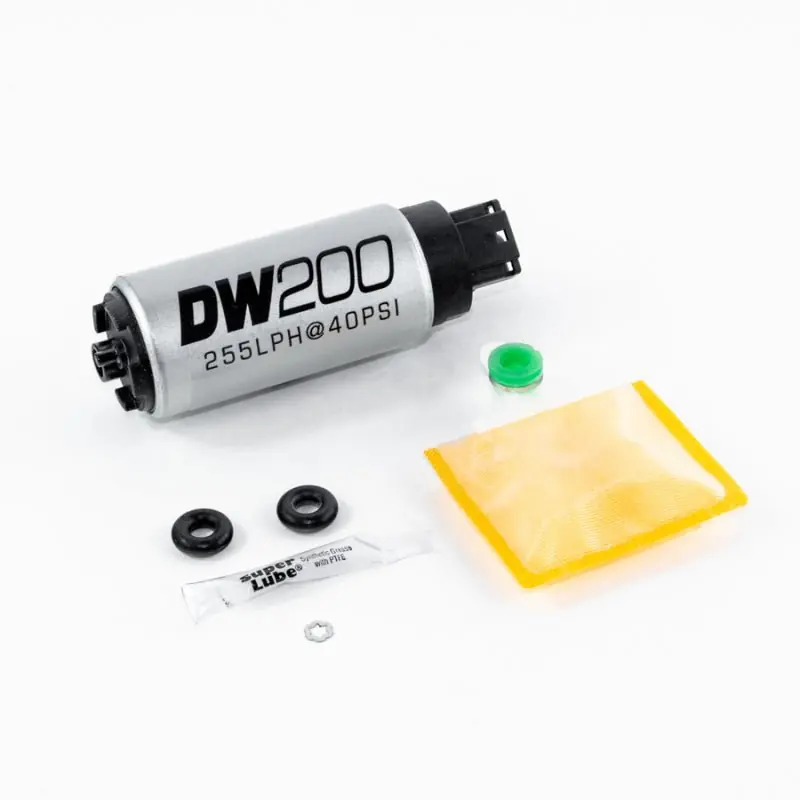

DeatschWerks DW200 Series 255lph Fuel Pump with Install Kit (Evo 8/9/2G DSM) (DWK9-201-0847)

DeatschWerks DW200 Series 255lph Fuel Pump with Install Kit

The DW200 flows 255lph at 40psi and is a popular choice for many high-performance applications which can be fitted with a standard fitment pump. The DW200 features a quiet and reliable turbine impeller which is compatible with pulse width modulated pump drivers. The pump also features an encapsulated armature for compatibility with ethanol-based fuels.

Features

• Weight – 12.6oz (360 grams)
• External Materials – Electroplated Steel
• Inlet Fitting – 7.7mm ID, 11.0mm OD
• Outlet Fitting – 5/16″ Hose Clamp
• PRV Activation – 100 psi
• Impeller Design – Single Scroll Composite Turbine
• Connector Terminal – Spade Pos/Neg
• Min Voltage Input – 6 Volts
• Max Voltage Input – 18 Volts
• Current Draw @ 40psi – 9 Amps (13.5v)

Benefits

• Increased fuel delivery capability
• 100% compatibility with ethanol fuel
